Silicone Coated Belt & Fabrics

The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.

Silicone Coated Belt & Fabrics Application

Electric insulation: Silicon rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.

Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.

Anti-corrosion sector: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to bean ideal anti-corrosion material.

Others: Apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

Silicone Coated Belt & Fabrics Features

Temperature resistance, it can continuously work under -70℃ to 260℃
Weatherability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years
Good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm

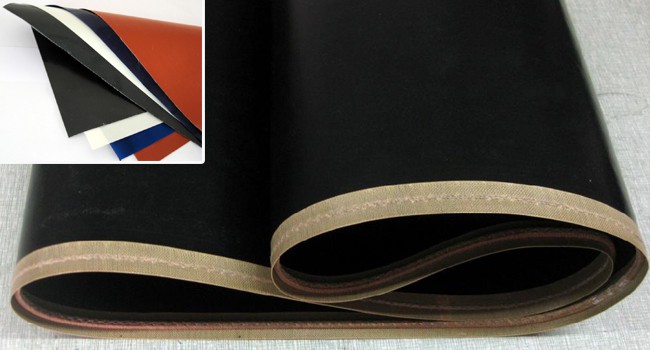

silicone coated belt
Silicone Coated Belt & Fabrics Technical Data
Item no. Thickness Breaking strength (n/50mm) Bursting strength Mpa combustible Standard width
5015 0.15 1500/1200 2.0 ≤25% 1000mm
5025 0.25 1800/1500 2.1 ≤25% 1250mm
5040 0.40 2000/1600 2.2 ≤25% 0—3000mm
5060 0.60 2400/2200 2.4 ≤25% 0—4000mm
5080 0.80 2600/2400 2.5 ≤25% 0—4000mm
5100 1.00 3000/2800 2.6 ≤25% 0—4000mm
5150 1.50 3700/3300 2.3 ≤25% 0—4000mm
5200 2.00 4200/3800 2.2 ≤25% 0—4000mm
