Conveyor Dryer Belt
We select fine glassfiber or Kevlar as basic weaving material, coated with excellent PTFE resin to make it into various PTFE open mesh conveyor dryer belts.
Conveyor Dryer Belt Application
Drying machine for non-woven textile, textile printing, silk- printing and dyeing machine.
Shrinking machine for garment fabric, high- frequency and UV dryer.
Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
Seperating sheet for hardboard production etc.
Conveyor Dryer Belt Features
High temperature resistance--It can continuously work under-140 to 260℃, max resist high
temperature up to 360℃
Permeability--It can avoid wasting heat and improve drying efficiency for it's permeability.
Chemical resistance--It can resist all most of chemical medicines.
Non Stick--It can easily remove all kinds of adhesives such as resin, paint and chemical
medicine, easy to clean.
Good flex fatigue resistance--It has high tensile strength and excellent flex fatigue resistance.
It's better for small wheels.
| Fiberglass Belts Technical Data |
| No. |
Mesh Size |
Material |
Thinkess |
Weight |
Temp Resistance |
Max width |
Tensile Strength |
| 6001 |
1X1mm |
Conveyor |
0.5mm |
390g/m2 |
-70-260℃ |
4m |
1600/1500N/5cm |
| 6002 |
2X2mm |
Conveyor |
0.7mm |
450g/m2 |
-70-260℃ |
4m |
2200/1500N/5cm |
| 6003 |
4X4mm |
Conveyor |
1.0mm |
500g/m2 |
-70-260℃ |
4m |
2100/1500N/5cm |
| 6004 |
4X4mm |
Conveyor |
1.0mm |
480g/m2 |
-70-260℃ |
4m |
2100/1500N/5cm |
| 6007 |
4X4mm |
Conveyor+Kevlar |
1.2mm |
560g/m2 |
-70-260℃ |
4m |
3300/2800N/5cm |
| 6008 |
4X4mm |
Conveyorl |
1.0mm |
570g/m2 |
-70-260℃ |
4m |
2800/1580N/5cm |
| 6010 |
4X4mm |
Kevlar |
1.0mm |
460g/m2 |
-70-260℃ |
4m |
3500/3300N/5cm |
| 6012 |
4X4mm |
Conveyor |
1.0mm |
580g/m2 |
-70-260℃ |
4m |
2800/1500N/5cm |
| 6013 |
10X10mm |
Conveyor |
1.0mm |
450g/m2 |
-70-260℃ |
4m |
1100/1000N/5cm |
| 6014 |
0.5X1mm |
Conveyor |
0.5mm |
420g/m2 |
-70-260℃ |
4m |
2200/1500N/5cm |
| 6015 |
2X2.5mm |
Conveyor |
0.9mm |
470g/m2 |
-70-260℃ |
4m |
2200/1500N/5cm |
Fiberglass Belts Joint method
This is the most common way of belt joints that pivotal joints, the joint network is made of Kevlar-coated teflon emulsion, Teflon mesh belt process is basically the same.
Belt connector + Kevlar wire= connector

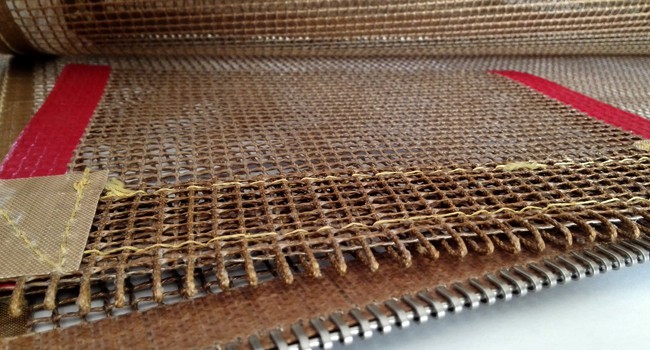

Material is stainless steel buckle clasp connector, first with Kevlar cloth belt edges, then add steel buckle.
Carabiner connector + Kevlar fabric= Connector
Fiberglass Belts Repair
1: If PTFE the mesh belt deviation phenomenon appears, then adjust the tension of the shaft end of the driven shaft should slowly adjust, remember to adjust quickly, resulting in network with edge scratch.
2: If PTFE the mesh belt with jitter phenomenon, check transport aircraft as well as the presence or absence of corrosion roller conveyor tunnel refused to transfer phenomenon, individually adjusted.
3: mesh belt chain drive chain if there jump and run instability, both ends of the drive shaft sprocket should check whether the synchronization client for excessive tooth wear.
