Balanced Wire Conveyor Belt


Balanced Wire Conveyor Belt Features


The balanced wire conveyor belt is connected by a straight rod, the mesh opening generally large. Can choose two kinds of model, the common type use round wire to make spiral mesh, can match the chain type . Another use flat wire to make spiral mesh , the flat wire mesh get better flatness.

The general type is connected by the left and right side of the net, which is connected by straight string. The spiral mesh is dense and the mesh spacing is even, which can make the conveyor belt walk smoothly. The mesh belt is suitable for conveying line with relatively small volume and relatively light quality. The two ends can be used for various edge treatment types.

Match chain conveyor belt is generally by chain drive small shaft drives the mesh belt to run again, wear into the net bar shaft, small to wear into the chain hole on both ends of the shaft, so as to achieve the chain driven conveyor mesh belt, chain network is stable, transmission torque is small.

Balanced Conveyor Belt Applications


   . Electronic industry (CRT automatic assembly line)
   . Glassware of the annealing furnace
   . Special high temperature equipment
   . Heat treatment
   . Washing
   . Transport
   . Food industries

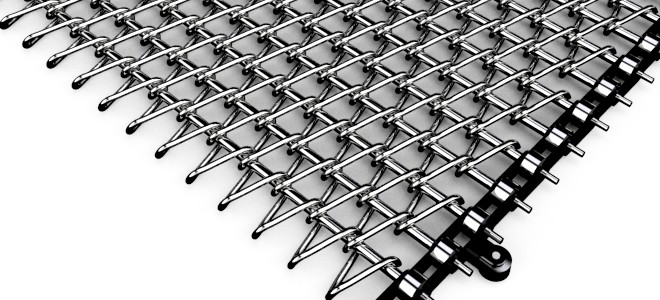

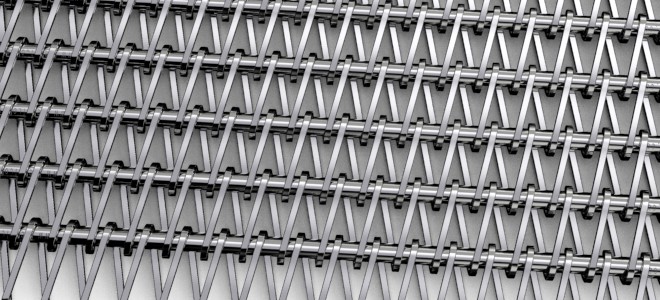

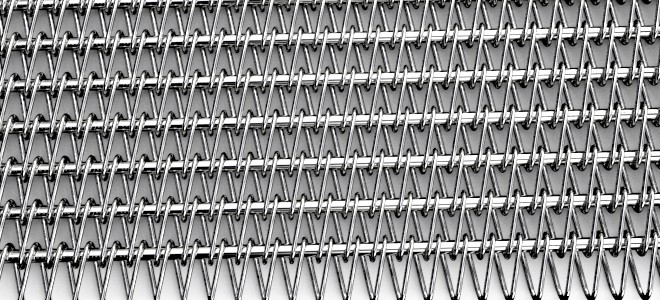

Round Wire Balance Conveyor Belt Flat Wire Balance Conveyor Belt Chain Balance Conveyor Belt

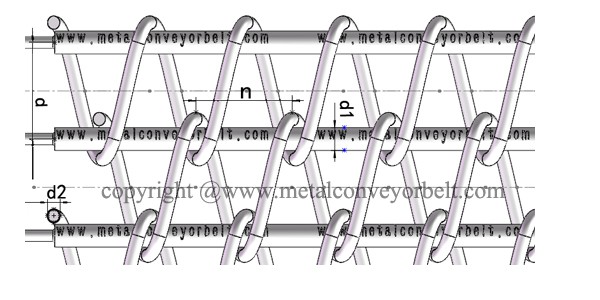

Conveyor Belt Reference


Round wire balance conveyor belt technical data
Type Spiral Number
Pieces
Stripe Number
Pieces
Rod Dia.(d2)
mm
Belt Thickness
mm
Spiral Wire Edge Type
Bs2.8/3.5 100 50 3.5 12 Round Ⅲ Ⅳ Ⅵ
Bs2.8/2.8 118 50 2.8 11 Round Ⅲ Ⅳ Ⅵ
Bs2.6/3.2 139 54 3.2 12 Round Ⅲ Ⅳ Ⅵ
Bs1.8/2.8 157 80 2.8 9 Round Ⅲ Ⅳ
Bs1.5/1.8 143 95 1.8 7.5 Round Ⅲ Ⅳ
Please contact our engineers for special specifications @ Email

Equipped chain balance conveyor belt technical data
Type Rod Pitch(n)
mm
spiral Pitch(p)
mm
Rod Dia.(d1)
mm
Belt Thickness
mm
Equipped Chain Spiral Wire Edge Type
Bs25.4x 25.4 10,12,16 5-14 8-17 16A,16B Round / Flat Ⅲ Ⅴ
Bs31.75x 31.75 10,12,16,20 6-14 9-17 20A,20B Round / Flat Ⅲ Ⅴ
Bs38.1x 38.1 10,12,16,20,22 7-14 10-17 24A,24B Round / Flat Ⅲ Ⅴ
Bs44.45x 44.45 10,12,16,20,22,25 9-14 12-17 28A Round / Flat Ⅲ Ⅴ
Bs50.8x 50.8 10,12,16.20,22,25,27 8-14 13-17 32A Round / Flat Ⅲ Ⅴ
Bs63.5x 63.5 10,12,16.20,22,25,27,37 10-14 13-17 32A Round / Flat Ⅲ Ⅴ
Please contact our engineers for special specifications @ Email
