CONVEYOR BELT MANUFACTURER

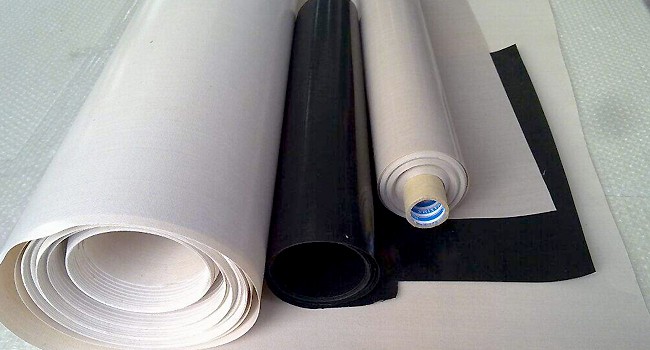

PTFE-Coated Fabrics


We use best imported Fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE Teflon high temperature resistance cloth in different thickness and widths

PTFE-Coated Fabrics Features


Stable dimension, high intensity, elongation coefficient less 5‰
Good temperature resistance, 24 hours working temperature –70-260Low coefficient of friction and dielectric constant, good insulating ability
Non stick, easy to clear stains and adhesives on the surface
Good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, lower in aging.

PTFE-Coated Fabrics Application


Used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners.
Used as non stick liners, intermediate
Used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance etc.
Used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.
PTFE-Coated Fabrics Technical Data
Item No.  Color Thickness
(mm)
Max Width
(mm)
Weight
(g/m2)
Tensile Strength(N/cm) Temperature
Resistance(℃)
Warp Weft
9008AJ Brown 0.076 1250 160 130 120 -70~260
9008BJ Black 0.076 1250 160 130 120 -70~260
9008Y Black 0.08 1250 170 130 120 -70~260
9013AJ Brown 0.127 1250 255 220 190 -70~260
9013BJ Black 0.127 1250 255 220 190 -70~260
9013Y Black 0.13 1250 260 220 190 -70~260
 9018AJ Brown  0.18 1250  380  330 250  -70~260
 9018BJ Black   0.18 1250  415  330 250  -70~260
 9025AJ  Brown   0.25 1250  490  410 330  -70~260
 9025BJ Black   0.25 1250  510  410   330 -70~260
 9025AK  Brown    0.23  2600  480   410  330 -70~260
9025BK Black  0.23  2600  480   410  330 -70~260
 9030AJ Brown  0.30    2600  630  560 445  -70~260
9030BJ  Black  0.30   2600  630  560  445 -70~260
9035AJ  Brown   0.34  1250 660   560  445 -70~260
9035BJ  Black   0.34  1250 680   560  445 -70~260
9036AJ  White  0.36  2950  780 820   500 -70~260
 9036BJ Black  0.36  2950   820 820  500  -70~260
9060AJ  White  0.60   2950   1150  1080 750  -70~260
 9090AJ Brown  0.90    2950 1700  1500  1250 -70~260
9090BJ  Black   0.90   2950  1700  1500  1250 -70~260
